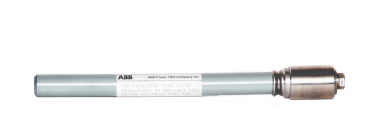

ABB 1C09100A04 - Medium Voltage CXP Fuse 16.6kV (Ferrule Connection)

ABB 1C09100A04 is a medium voltage CXP fuse designed for high-voltage circuit protection in industrial power distribution systems. It features a 16.6kV voltage rating and utilizes ferrule connections for secure electrical termination. The fuse construction ensures reliable performance with a compact design weighing 5 lb for straightforward installation. This unit complies with international medium voltage protection standards for industrial applications. Typical uses include motor protection, transformer circuits, and switchgear applications in utility and industrial environments.

Key Features & Specifications

• Type: Medium Voltage CXP Fuse with ferrule connection
• Voltage Rating: 16,600V AC
• Current Rating: Medium Voltage application specific
• Dimensions: Compact industrial design
• Standards: International medium voltage protection standards
• Applications: Industrial power distribution, motor protection, transformer circuits, switchgear
• Connection: Ferrule
• Weight: 5 lb
• Item Subcategory: Medium Voltage
• Mounting: Industrial electrical equipment
• Certification: Meets industrial protection standards
• Installation Type: Industrial electrical systems

Product Identification

• Manufacturer Part Number: 1C09100A04
